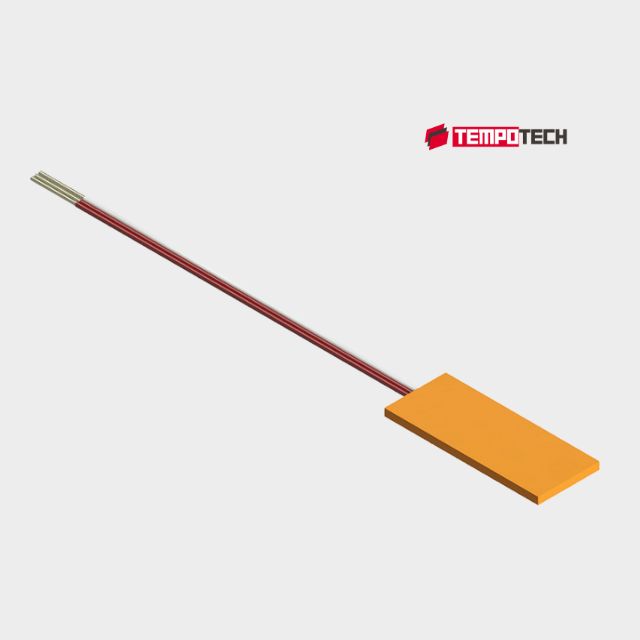

KPT-TC Patch thermocouple is a specialized temperature sensor designed for accurate surface temperature measurement of curved surfaces. It consists of a thin, flexible thermocouple foil junction encapsulated in polyamide patch with or with adhesive. These thermocouples are great choice for R&D work where permanent sensor installation is not required. They are often equipped with an insulated wire and connector, enabling easy connection to temperature measurement devices like digital thermometers or data loggers.
Key Features:-
- Flexi polyamide encapsulated patch for easy installation on curved surfaces
- Exhibits faster response time makes it ideal for process control applications
- Its non invasive and can be easily applied and removed without damaging surfaces
- Mostly available with multiple thermocouple calibrations like type K ,J and T
- Available with Adhesive back
- Exposed Junction for Quick Response <1.0 Sec
- Maximum Temperature : 260°C (500°F)
- ASTM E608/608M/ IEC 60584 & ANSI MC 96.1 standard tolerances
Application Note
KPTC: Self-adhesive polyamide patches Thermocouple is used for surface temperature measurements in various applications, including electric motor surface monitoring and HVAC systems. These patches offer a convenient, accurate, and durable solution for temperature sensing without requiring complex installation
