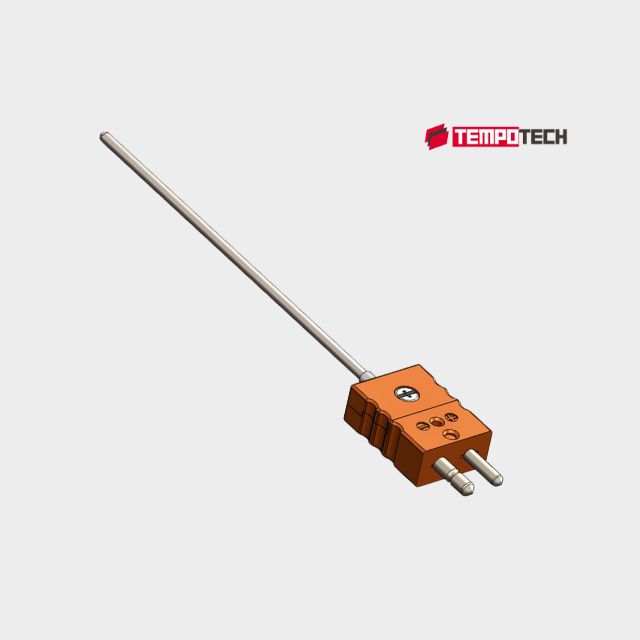

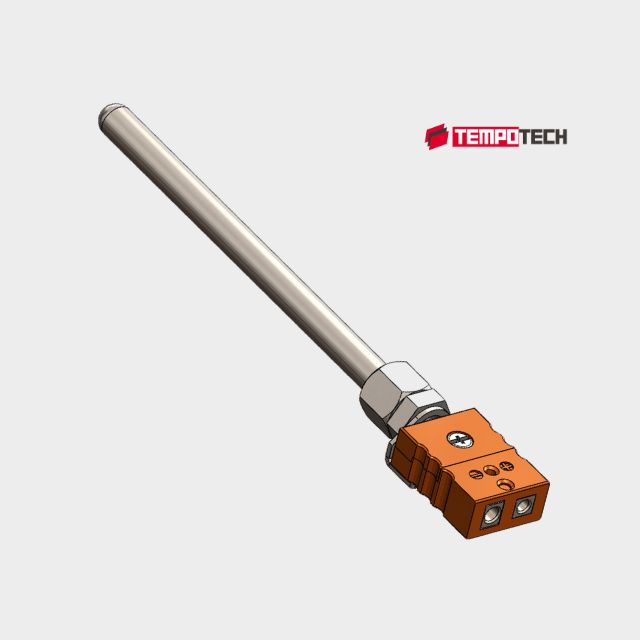

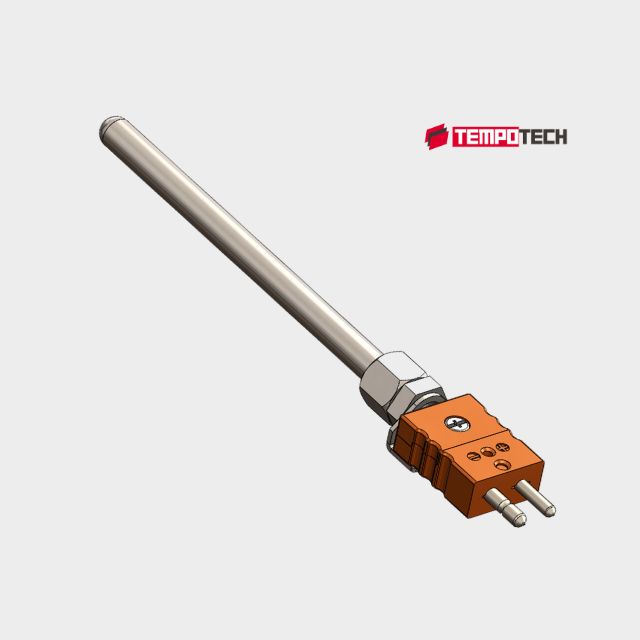

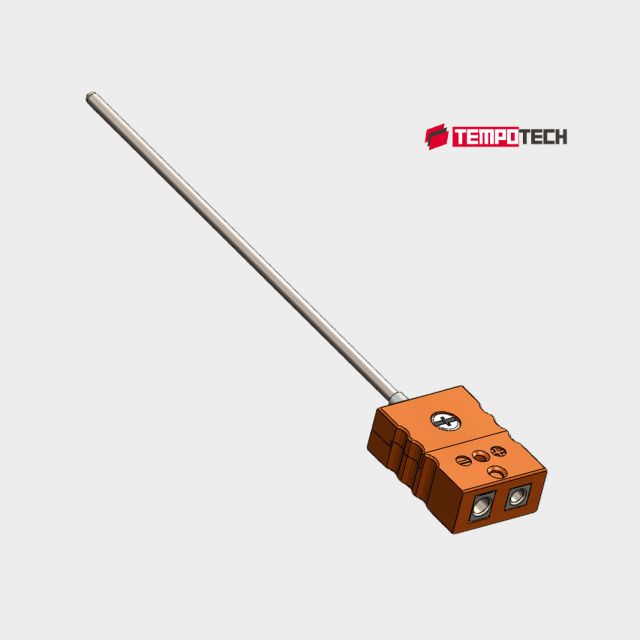

TC-12 MGO-PAC Thermocouple Probe with Connector

SKU: N/A
Quick-Connect Design

TC-12 MGO-PAC Thermocouple Probe with Connector

Mineral Insulated Thermocouple Probe with Connector for Reliable Industrial Process Temperature Measurement

The TC12 MGO-PAC Thermocouple Probe with Connector is designed to enable accurate, reliable and long-lasting temperature measurement in industrial applications where rapid installation and dependable performance are important. Because it is made with mineral-insulated (MgO) cable, the TC12 shows good resistance to vibration, mechanical stress, moisture and severe operating conditions, and the connector which is fitted by the manufacturer makes it possible to carry out quick installation and easy replacement of the sensor when carrying out maintenance. The TC12 is available in a variety of thermocouple types, sheath materials, junction styles, probe diameters, immersion lengths and connector choices and can therefore be set up for use in OEM equipment, industrial process systems, furnaces, ovens, plastics processing, food manufacturing, laboratories and power generation applications in which reliable direct-immersion temperature measurement is required.

Mineral Insulated Construction

Compacted magnesium oxide insulation provides outstanding mechanical strength, electrical insulation, and long-term reliability in demanding industrial environments

Quick-Connect

Factory-installed connector enables fast installation, easy sensor replacement, and reduced maintenance downtime

Reliable Temperature

Delivers stable, repeatable, and dependable temperature measurement for industrial process control and OEM equipment

High-Temperature

Choose from high-temperature, ultra-high-temperature, ceramic, standard, and miniature connectors to match demanding application requirements

Moisture Resistant

The compacted MgO insulation and sealed construction help protect the sensing element from moisture and contaminants, improving long-term reliability

Custom Configurations

Available with custom probe diameters, immersion lengths, process connections, connectors, and accessories to match OEM and replacement applications

Download Datasheet

Quick Specifications

Thermocouple Type Type J, K, E, N, or T
Sensor Construction Mineral Insulated (MGO-PAC)
Connector Style Standard, Miniature, High-Temperature, Ultra-High-Temperature & Ceramic Connectors
Sheath Material SS304, SS316, SS321, SS310, Inconel® 600, SS446 & Inconel® 800
Sheath Diameter 0.062 Inch–0.394 Inch (1.5 to 10.0 mm)
Junction Type Grounded, Ungrounded, Exposed (Simplex & Duplex)
Ideal for
Furnaces
Plastic
Chemical
Oil and Gas
Food & Beverage
Power
Industrial Process
OEM
The TC12 MGO-PAC Thermocouple Probe with Connector is designed for engineers, original equipment manufacturers and maintenance technicians who need reliable temperature measurement in harsh industrial environments. Because it is made with mineral insulated (MgO) cable, the TC12 offers good mechanical strength, a high degree of vibration resistance and long-term reliability, together with the advantage of having a connector fitted by the manufacturer to make installation quick and maintenance easier. It is meant for use in measuring temperature by direct immersion in process equipment in cases where accuracy, durability and ease of servicing are all important. The TC12 is a rigid, mineral-insulated thermocouple with a connector and is available in a variety of thermocouple types, sheath materials, junction styles, diameters and connector choices to meet a wide range of industrial application requirements.
Designed to satisfy a variety of process requirements, the TC12 comes in the form of Type J, K, E, N, and T thermocouples with junctions that are grounded, ungrounded, or exposed, enabling engineers to balance response time, electrical isolation, pressure capacity, and measurement performance. The sensor can be configured using sheath materials such as 304, 316, and 321 stainless steel, Inconel® 600, Incoloy® 800, Monel, and other special alloys, thus making it appropriate for use in corrosive, high-temperature, and demanding industrial processes.
Because of the integrated connector, it is possible to establish a secure electrical connection and at the same time carry out quick sensor replacements when carrying out maintenance, thus reducing the amount of downtime and making field service easier. The TC12 can be customized for new equipment, for use in OEM production and for replacement installations because there are a variety of connector types, process fittings, immersion lengths and accessories.
The TC12 is capable of providing stable and consistent temperature readings whenever it is used in furnaces, ovens, heat treatment systems, plastics processing equipment, food processing machinery, power generation systems, laboratories, or general industrial process equipment. Since it conforms to established industry standards, it is offered within the tolerances specified by IEC 60584, ANSI MC96.1, and ASTM E608, and optional calibration according to ASTM E220 is available, which gives engineers confidence in the performance of their measurements over the entire service life of the sensor.

Product Specifications

Review the standard specifications and available configuration options for the TC12 Thermocouple. Sheath diameter, insertion length, thermocouple type, lead wire, insulation, connector style, temperature rating, and optional features may vary depending on the selected configuration and application requirements

Thermocouple TypeType J, K, E, N, or T
Sensor ConstructionMineral Insulated (MGO-PAC)
Connector StyleStandard, Miniature, High-Temperature, Ultra-High-Temperature & Ceramic Connectors
Sheath MaterialSS304, SS316, SS321, SS310, Inconel® 600, SS446 & Inconel® 800
Sheath Diameter0.062 Inch–0.394 Inch (1.5 to 10.0 mm)
Junction TypeGrounded, Ungrounded, Exposed (Simplex & Duplex)
Immersion LengthCustom Configurable
Process FittingOptional Compression Fitting Available
Temperature AccuracyASTM E608/E608M, IEC 60584 & ANSI MC96.1
CalibrationNIST/ISO 17025

Spare Parts & Accessories

Complete your installation with compatible mounting accessories, connectors, and replacement components for the TC12 Thermocouple.

Image: BT-MC PROTECTION BOOT FOR MINI CONNECTOR

BT-MC PROTECTION BOOT FOR MINI CONNECTOR

The two flexible silicone rubber boots will cover the connector set snugly and prevent moisture, water and dirt entering the connector. Construction Silicone cover with retention ring prevent disconnection due to vibration.…

Find more…
Read
Image: BT-MC PROTECTION BOOT FOR MINI CONNECTOR

BT-SC PROTECTION BOOT FOR STD. CONNECTOR

The two flexible silicone rubber boots will cover the connector set snugly and prevent moisture, water and dirt entering the connector. Construction Silicone cover with retention ring prevent disconnection due to vibration.…

Find more…
Read
Image: CFT-Compression Thermocouple Fitting

CFT-Compression Thermocouple Fitting

Thermocouple fitting is used in applications where a thermocouple  needs to be connected to a an application,  control system, or other measurement instruments. The fitting ensures that the thermocouple wire is securely…

Find more…
Read

Configure This Product

Open the product configurator to select available options and prepare your configuration.

Configure Product

Frequently Asked Questions

Find answers to common questions about the TC12 thermocouple

Which connector type should I select for my application?+

The TC12 is available with standard, miniature, high-temperature, ultra-high-temperature, and ceramic connectors. The appropriate connector depends on the operating temperature, available space, and environmental conditions

Can the TC12 be used in high-vibration industrial equipment?+

Yes. The TC12 is designed for demanding industrial environments. If your application is exposed to severe vibration or mechanical shock, please let us know so we can offer a specially reinforced construction to suit your operating conditions

What information should I provide when ordering a TC12 thermocouple?+

To ensure the correct configuration, provide the thermocouple type, sheath diameter, immersion length, junction type, sheath material, process fitting, connector type, and any optional accessories required for your application

Can the TC12 be supplied with a duplex connector?+

Yes. The TC12 is available with simplex or duplex thermocouple elements and can be supplied with a duplex connector for applications requiring redundant temperature measurement, dual control systems, or simultaneous monitoring and recording. Please specify your thermocouple type and connector requirements when ordering

How can I identify the thermocouple type if the connector is damaged or missing?+

If the connector is damaged or missing, the thermocouple type can often be identified by the markings, original equipment documentation, or the manufacturer's part number. If this information is unavailable, send photos of the sensor, probe dimensions, application details, and any markings to Tempotech Controls. Our engineering team can help identify the thermocouple type and recommend the correct replacement.

Can the TC12 be manufactured to match an existing OEM part number?+

Yes. Simply provide the OEM part number, drawing, or sample sensor, and Tempotech Controls can manufacture a compatible replacement to match your application. The configurable ordering options in the datasheet support this capability
