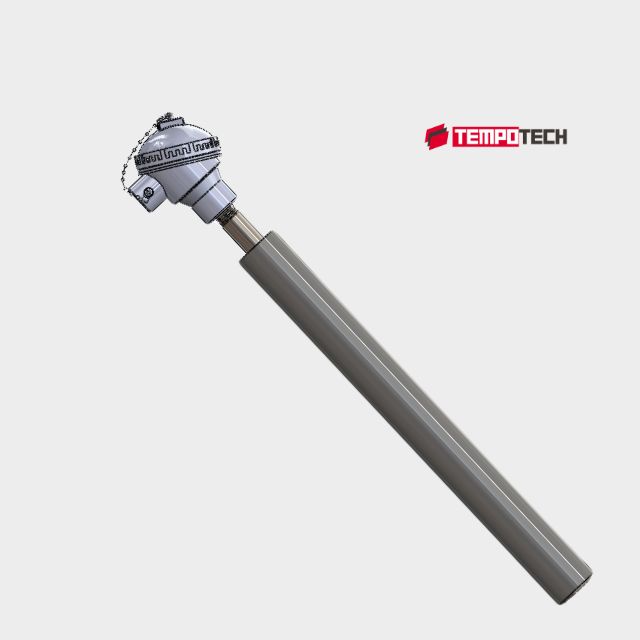

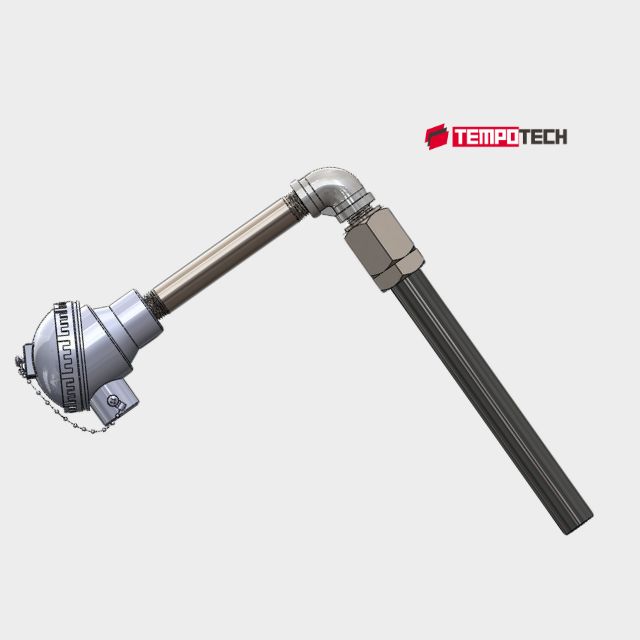

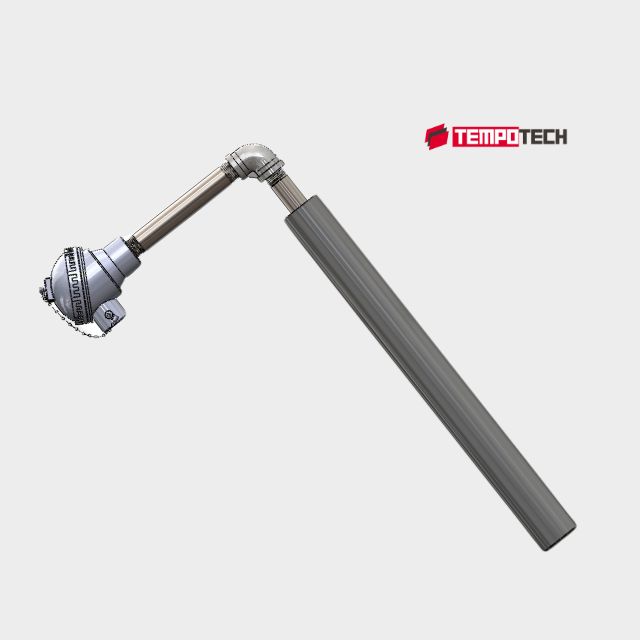

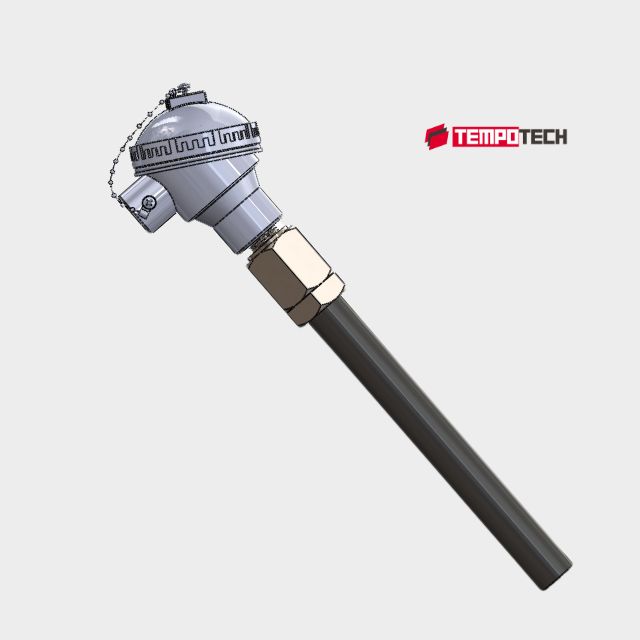

TC300 is L shape Aluminum Holding Furnace Thermocouple with a Silicon Carbide (SiC) protective tube is a high-temperature sensor designed for continuous monitoring of molten aluminum in holding furnaces, crucibles, and ladles. The SiC sheath provides excellent thermal shock resistance, corrosion protection, and mechanical strength, making it ideal for harsh foundry environments. Its comes in straight and L-shape thermocouples.
Key Features:-
- Available in thermocouple type K with 316 SS Sheath
- Available in single junction, Duplex avaiable , Mineral Insulated MGO-PAC style avaiable
- Available in 8 AWG,14 AWG, 20 AWG
- Avaiable junction Twist, Insulated Junction, Standard TIG weld, for MGO PAC Grounded & Ungrounded
- Standard X length for angled assembly 400 mm Nickel Plated 1/2″ NPT Pipe
- Various protection tube options Silicon Carbide (SiC), Silicon Nitride, protective tube offers superior resistance to thermal shock, oxidation, and corrosion from molten aluminum.
- Typically operates in the temperature range of 800°C to 1600°C (1470°F to 2910°F) depending on the thermocouple type* ( See protection tube data sheet )
- Available in standard and special tolerances as per IEC 60584 and ANSI MC96.1.
- Coated Protection Tube for Holding furnace with wetting proptery
Application Note
In aluminum processing applications—including casting, refining, alloying, and holding furnace operations—the TC300 Angled Thermocouple provides precise, real-time molten metal temperature measurement to ensure process stability and product quality. Its angled design allows insertion into holding furnaces, crucibles, and ladles at an optimal orientation, positioning the sensing tip below the bath surface and away from dross layers or refractory walls, which improves measurement accuracy and extends sensor life. By delivering reliable thermal data during casting, the TC300 helps prevent defects such as porosity, cold shuts, and shrinkage while maintaining consistent alloy formation during alloying and refining steps. In holding furnaces, the thermocouple enables tight temperature control, supporting uniform melting and reducing energy consumption. When used in ladles and transfer troughs, the angled configuration protects the sensor from mechanical damage during filling and pouring. Ultimately, the TC300 enhances operational efficiency, minimizes costly process errors like re-melts and scrap, and ensures stable thermal
