TC13 Tube and Wire Thermocouple with Cut to Length Style

SKU: TC13
Cut-to-Length Design

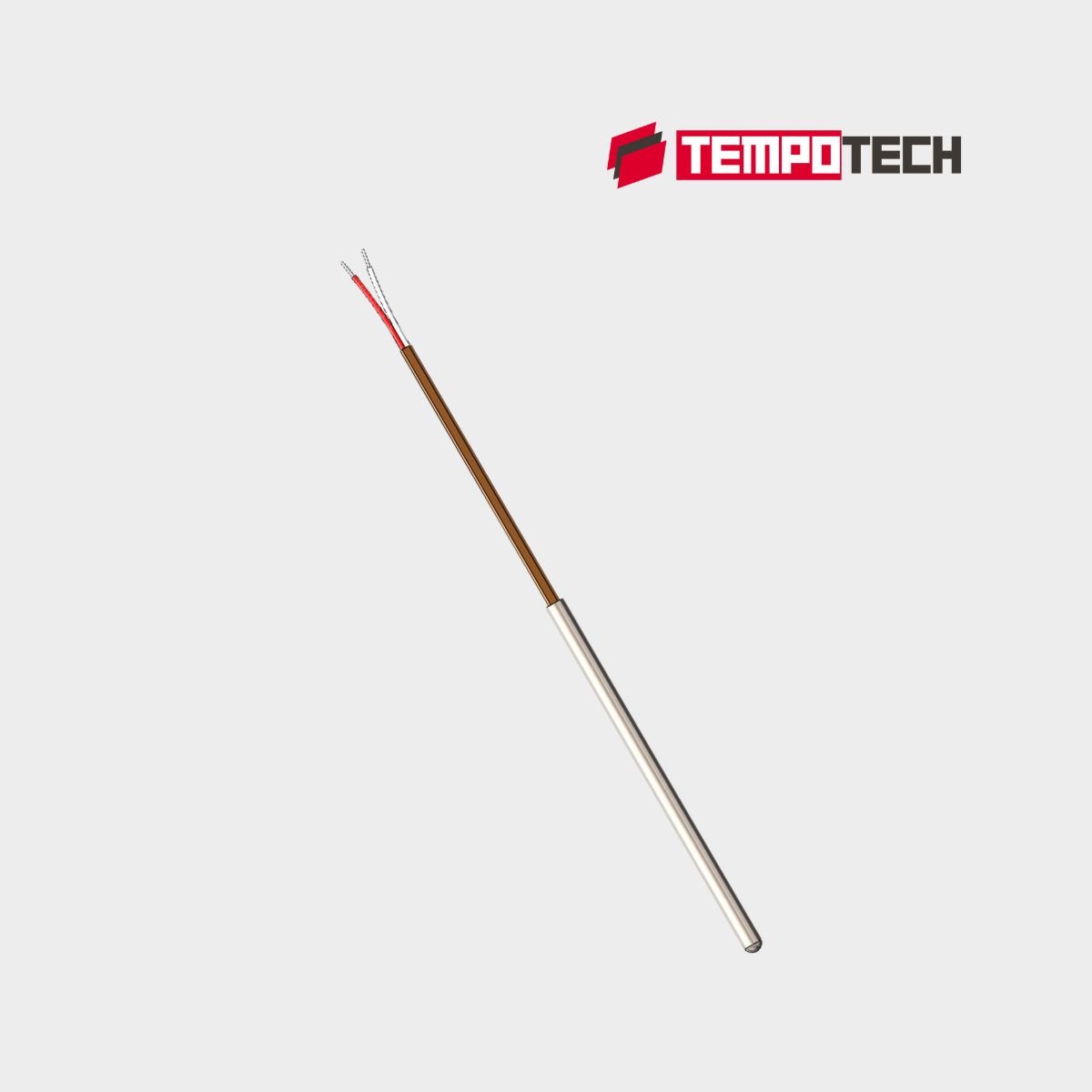

TC13 Tube and Wire Thermocouple with Cut to Length Style

Tube and Wire Style Thermocouple with Cut-to-Length Option for OEM & Industrial Process Temperature Measurement

The TC13 Tube and Wire Style Thermocouple with Cut-to-Length Option provides a simple, dependable, and cost-effective solution for industrial process temperature measurement. Designed for OEM equipment, replacement applications, and general industrial use, its cut-to-length tube construction allows installers to trim the sensor to the required length during installation, reducing inventory while simplifying maintenance. Available in multiple **thermocouple types, sheath materials, junction styles, process fittings, and lead wire options, the TC13 delivers reliable temperature measurement for heating systems, process equipment, machinery, and industrial applications where flexibility, customization, and long-term performance are essential.

Cut-to-Length

Allows the sensor to be trimmed to the required length during installation, reducing inventory and simplifying field replacement

Reliable Temperature

Provides stable and repeatable temperature measurement for OEM equipment and industrial process applications

✓

Multiple Thermocouple Types

Available in Type J, K, T, E, and N

Cost-Effective OEM

An economical temperature sensor designed for OEM production, maintenance replacements, and high-volume industrial applications

Flexible Termination

Available with bare leads, miniature connectors, standard plugs, ceramic connectors, and high-temperature terminations.

Custom Configurations

Choose from various sheath diameters, immersion lengths, lead wires, process fittings, and connector styles to match your application.

Download Datasheet

Quick Specifications

Thermocouple Type Type J, K, T, E, or N
Sensor Construction Tube & Wire Style
Sheath Material SS304, SS316, SS310 & SS321
Sheath Diameter 1/8"–3/8 Inch (3.2 to 10.0 mm)
Junction Type Grounded or Ungrounded (Simplex & Duplex)
Cut-to-Length Option Available for On-Site Sizing
Ideal for
Industrial Equipment
OEM
Heat Treatment
Plastic
Packaging
HVAC
Laboratory
Maintenance
The TC13 Tube and Wire Style Thermocouple with a Cut-to-Length Option is intended for use by OEM manufacturers, industrial equipment builders, maintenance crews, and process engineers who need a reliable, economical, and configurable temperature sensor for medium-temperature process applications. Because of its simple tube-and-wire design, the sensor provides reliable performance and at the same time allows installers to cut it to the required length on site, thus cutting down installation time and reducing the need for inventory. The ability to cut the sensor to length is available for the standard tube diameters, which makes the TC13 a practical choice both for new installations and for retrofits of existing equipment.
The TC13 is designed for direct measurement of temperature and can be obtained in the form of Type J, K, T, E, and N thermocouples, with measuring junctions that are grounded, ungrounded, or exposed, so that engineers can choose the combination that gives the best compromise between response time, durability, and electrical isolation for their particular application. Various sheath materials, such as 304 and 316 stainless steel, enable the sensor to endure harsh industrial conditions without compromising its long-term measurement stability.
In order to facilitate its integration into OEM equipment and process systems, the TC13 is available with a wide variety of sheath diameters, immersion lengths, lead wire insulation types, process fittings, and connector styles. Because standard plugs, miniature connectors, high-temperature connectors, adjustable compression fittings, and optional accessories are provided, the sensor can be adapted to meet almost any installation requirement.
The TC13 is manufactured in accordance with the ASTM E608/E608M, IEC 60584, and ANSI MC96.1 standards and offers consistent temperature measurement with the level of accuracy and repeatability that is required in industrial process control. If required, optional calibration can be provided for applications in which documented measurement performance is needed. In use within OEM machinery, process equipment, heating systems, laboratory equipment, or for general industrial temperature monitoring, the TC13 gives a reliable and cost-efficient sensing solution, thanks to Tempotech Controls’ dedication to quality, customization, and prompt engineering support.

Product Specifications

Review the standard specifications and available configuration options for the TC13 Cut to Length Ecnomical Thermocouple. Sheath diameter, insertion length, thermocouple type, lead wire, insulation, connector style, temperature rating, and optional features may vary depending on the selected configuration and application requirements

Thermocouple TypeType J, K, T, E, or N
Sensor ConstructionTube & Wire Style
Sheath MaterialSS304, SS316, SS310 & SS321
Sheath Diameter1/8"–3/8 Inch (3.2 to 10.0 mm)
Junction TypeGrounded or Ungrounded (Simplex & Duplex)
Cut-to-Length OptionAvailable for On-Site Sizing
Immersion LengthCustom Configurable
Lead Wire LengthCustom Configurable
Process FittingOptional Compression Fitting Available
Thread OptionsNPT, BSP & Metric
Lead Wire InsulationPVC, PTFE, High-Temp PTFE, Fiberglass & High-Temp Fiberglass
Termination OptionsBare Ends, Standard, Miniature & High-Temperature Connectors

Spare Parts & Accessories

Complete your installation with compatible mounting accessories, connectors, and replacement components for the TC13 Thermocouple.

Image: BT-MC PROTECTION BOOT FOR MINI CONNECTOR

BT-MC PROTECTION BOOT FOR MINI CONNECTOR

The two flexible silicone rubber boots will cover the connector set snugly and prevent moisture, water and dirt entering the connector. Construction Silicone cover with retention ring prevent disconnection due to vibration.…

Find more…
Read
Image: BT-MC PROTECTION BOOT FOR MINI CONNECTOR

BT-SC PROTECTION BOOT FOR STD. CONNECTOR

The two flexible silicone rubber boots will cover the connector set snugly and prevent moisture, water and dirt entering the connector. Construction Silicone cover with retention ring prevent disconnection due to vibration.…

Find more…
Read
Image: CFT-Compression Thermocouple Fitting

CFT-Compression Thermocouple Fitting

Thermocouple fitting is used in applications where a thermocouple  needs to be connected to a an application,  control system, or other measurement instruments. The fitting ensures that the thermocouple wire is securely…

Find more…
Read

Configure This Product

Open the product configurator to select available options and prepare your configuration.

Configure Product

Frequently Asked Questions

Find answers to common questions about the TC13 thermocouple

How does the cut-to-length option benefit my installation?+

The TC13 can be supplied with a cut-to-length option, allowing the probe to be trimmed on-site to match the required insertion length. This simplifies installation, reduces inventory, and provides greater flexibility for OEM and maintenance applications.

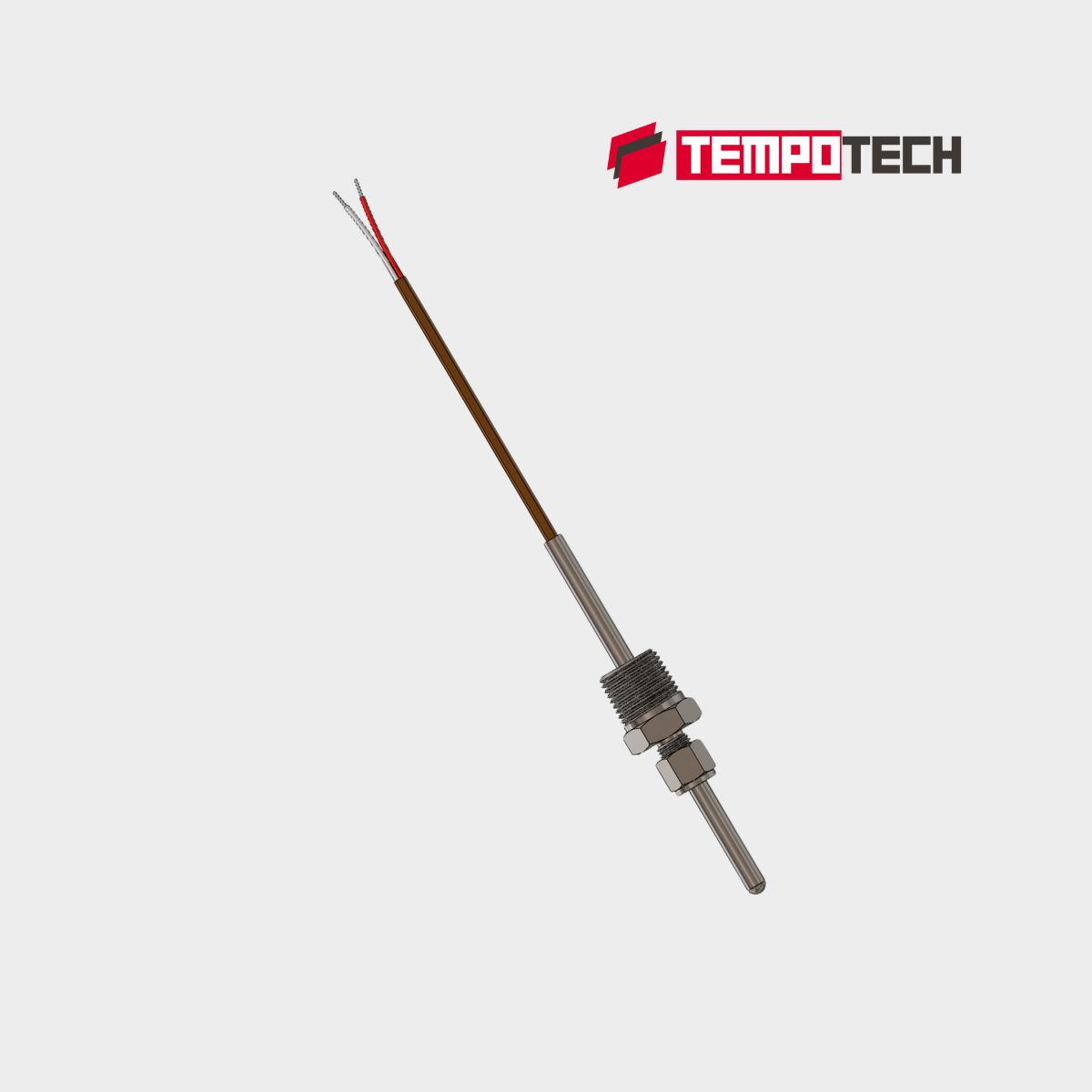

Can I add a compression fitting after cutting the TC13 to length?+

Yes. The TC13 can be used with an optional adjustable compression fitting, allowing the immersion depth to be set during installation while providing a secure process seal.

Which should I choose: TC11 MGO-PAC Thermocouple or TC13 Tube & Wire Thermocouple?+

Choose the TC11 MGO-PAC Thermocouple when your application requires higher temperatures, faster response, superior vibration resistance, greater mechanical strength, and longer service life in demanding industrial environments. Choose the TC13 Tube & Wire Thermocouple when you need an economical, medium-temperature sensor with the flexibility to cut the probe to length on-site for OEM equipment, maintenance, or general industrial applications.

Can the TC13 replace a tube and wire thermocouple from another manufacturer?+

es. In many cases, the TC13 can be custom manufactured to replace an existing tube and wire thermocouple. Providing the thermocouple type, sheath diameter, immersion length, and termination details helps ensure compatibility with your equipment.

What tools do I need to cut the TC13 Tube & Wire Thermocouple to length?+

The TC13 is designed for on-site length adjustment using a tubing cutter suitable for the probe diameter. If an adjustable compression fitting is used, a replacement ferrule may also be required after cutting to ensure a secure seal. For the best results, use clean cutting practices and follow Tempotech Controls' installation recommendations.

How much can I cut the TC13 Tube & Wire Thermocouple?+

The TC13 can be cut to suit your installation requirements; however, a minimum of 3 inches of tube must remain to ensure proper sensor construction and reliable performance. If you are unsure of the required insertion length, contact Tempotech Controls for application guidance.Please check with our sales team for custom tip length.
