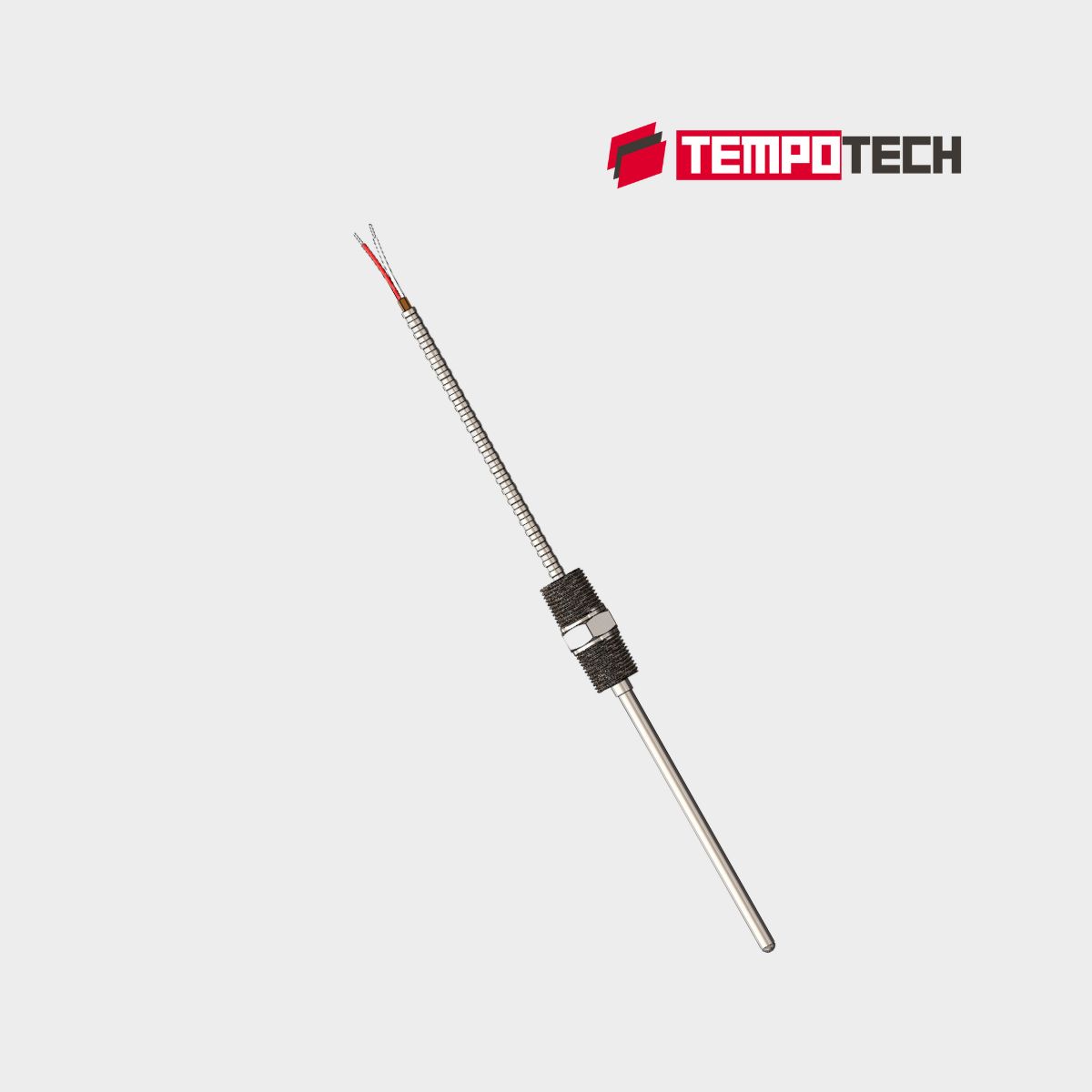

TC14 MGO-PAC Thermocouple is direct immersion type mineral Insulated Thermocouple for Various applications in process temperature measurement. Mgo Packed thermocouples are rigid in construction, can be used in temperature applications in harsh environments.It comes with welded threaded fitting for easy and liquid-tight installation into the process.
Key Features:
- Available in type J, K, E, N, T .
- Sensor ranges from -200°C to +1,260 °C [-330 to +2,300 °F]
- A wide selection of sheath material to suit application requirement, 304ss, 316ss, 321ss, Inconel® 600, 800, Monel (See Data sheet ).
- Sheath diameter is available from 0.040″ to 0.375″.
- Grounded, Ungrounded and Exposed junction to suite application requirement.
- Available with Standard temp ,high temp and ULTRA high temperature connectors.
- Available in IEC 60584 & ANSI MC 96.1 standard tolerances and special tolerances
Application Note
TC14 MGO-PAC Thermocuple Mineral Insulated Cable Immersion thermocouples are designed for direct installation into various processes, offering reliable temperature measurement in applications such as Ovens, Incubators, Furnaces, and Kiln. Some custom designs are also used for Extruders, boilers, bearing temperature, or any General Temperature monitoring application . They are also ideal for use in pipes and vessels, providing accurate readings in a wide range of industrial settings. These thermocouples are particularly effective in environments free from aggressive chemicals and abrasive conditions.
