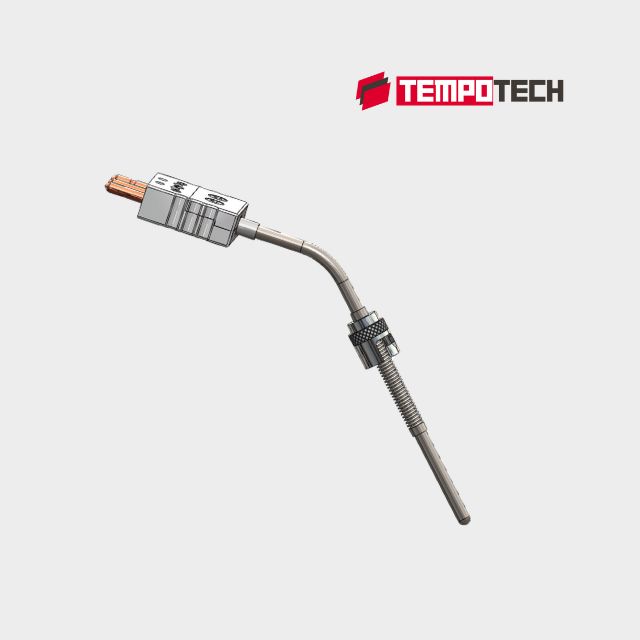

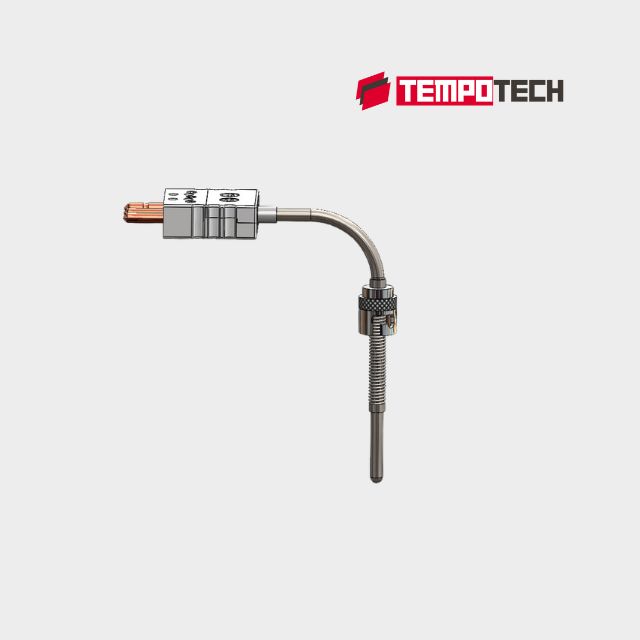

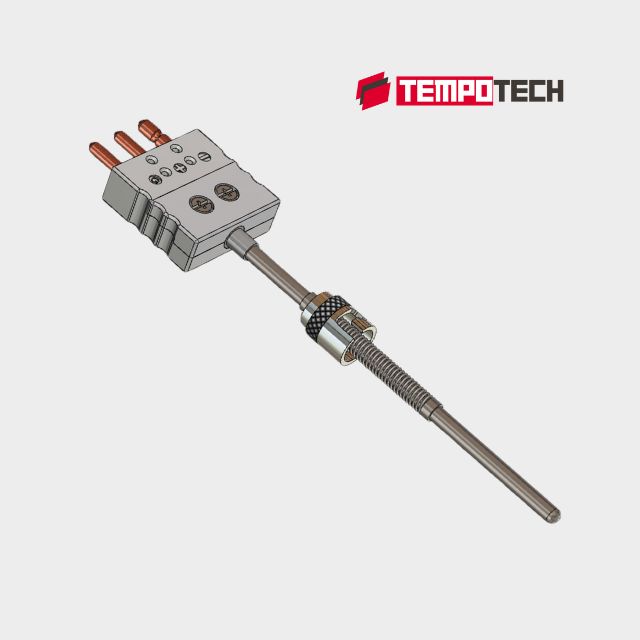

RTD42- Bayonet are flexible temperature sensors that offer easy installation and secure mounting, making them perfect for applications requiring reliable and consistent surface contact. They are equipped with a spring-loaded bayonet cap that maintains constant pressure against the measurement surface, ensuring accurate and stable temperature readings.
Key Features:-
- Bayonet Lock Mechanism provides a secure and vibration-resistant connection along with quick installation & removal.
- Commonly available in Pt100, Pt500, Pt1000 (Pt100 is the most widely used.
- Available in Class A or Class B accuracy (IEC 60751& ASTM E1137)
- Spring-Loaded Tip ensures firm contact with the surface or bearing housing, improving response time.
- Available in stainless steel (304, 316, or Inconel) for durability and corrosion resistance
- Insulation Resistance : 100 MG Ohms @ 250 vdc
- Response Time : <5 Sec in circulating water @ 1ft/sec
- Accuracy : As per IEC60751 (See tolerance chart)
- Self Heating Error: < 0.30°F (0.17°C)
- Time Constanat : < 5 sec
Application Note
RTD42 is ideal for Temperature measurement of nozzles, molds, and die heads in plastic injection molding machines. Measure the temperature of barrel and die in plastic & rubber extrusion machines and in blow molding equipment for consistent material flow and product formation.
