A Weld Pad RTD32 is a type of surface resistance temperature detector designed specifically for measuring temperatures on metal surfaces. It ensures precise thermal contact and accurate temperature readings by featuring a flat, flexible sensing tip that can be directly welded or brazed onto a metallic surface. This type of thermocouple is widely used in applications requiring permanent or semi-permanent temperature monitoring of pipes, vessels, and equipment in harsh industrial environments.
Key featrues:-
- Available in type Pt100,Pt100(0.00392),Pt200,Ni20 ohm .
- Available in Class B, Class A, Class AA, 1/10 DIN B(IEC 60751& ASTM E1137)
- Single and Duplex Sensor elements.
- Range -196°C to 600°C ( -320°F to 1,112 °F)
- Standard Weld Pad size 1″x1″x1/8″, Custom option available

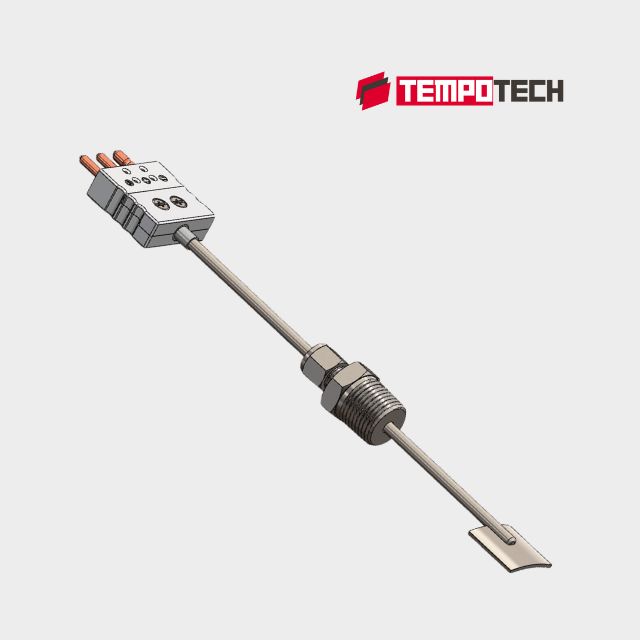

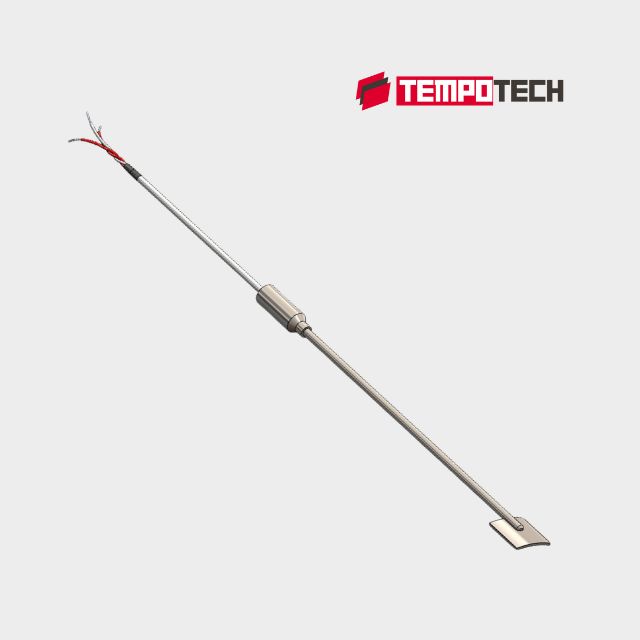

- Bare ends and Connector option avaible
- TEFLON (200°C)fiberglass wire 480°C with SS braiding and Armours available
- Insulation Resistance : 100 MG Ohms @ 250 vdc
- Response Time : <5 Sec in circulating water @ 1ft/sec
- Accuracy : As per IEC60751 (See tolerance chart)
- Self Heating Error: < 0.30°F (0.17°C)
- Time Constanat : < 5 sec
