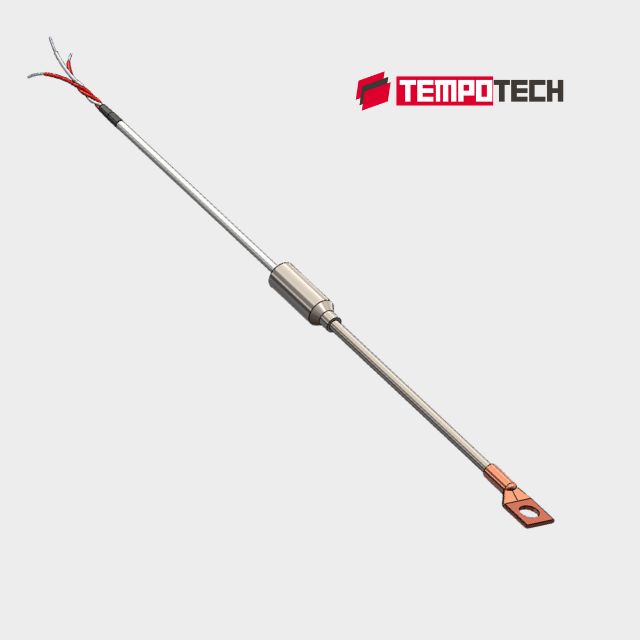

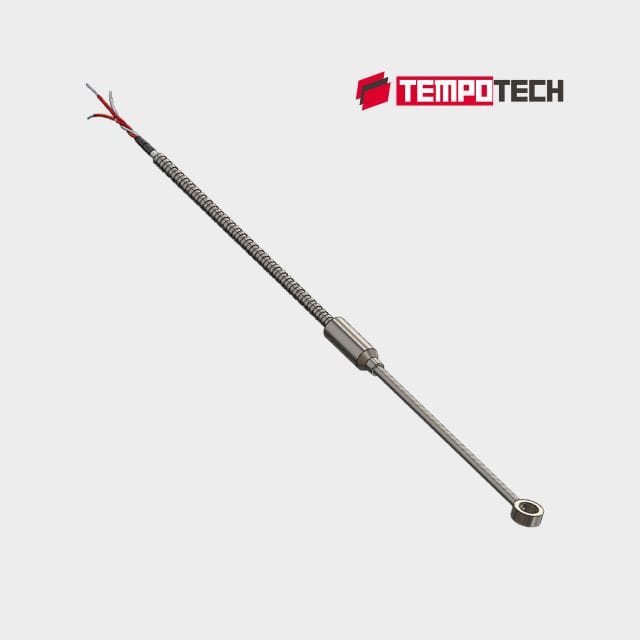

The RTD24 Ring Style/Gasket Resistance Temperature Detector from Tempotech Controls is designed for precise surface temperature measurement in a variety of industrial applications. This sensor offers flexibility with multiple options, including different bolt sizes and wire configurations, to meet specific requirements. The RTD24 provides reliable and accurate temperature readings, making it ideal for surface monitoring in processes such as manufacturing, heating systems, and machinery. Its customizable features ensure that it can be tailored to fit a wide range of installation environments, delivering consistent performance and enhanced operational efficiency across diverse industries.
Key Features:-
- Available in types: Pt100, Pt100 (0.00392), Pt200, Ni20 ohm.
- Available in Class B, Class A, Class AA, 1/10 DIN B (IEC 60751 & ASTM E1137).
- Single and Duplex sensor elements.
- Temperature range: -50°C to 510°C (-58°F to 950°F).
- Ring style and lug type options.
- Bare ends and connector options available.
- Teflon (200°C) and fiberglass wire (480°C) with SS braiding and armoring available.
- Insulation resistance: 100 MΩ @ 250 VDC.
- Response time: < 5 sec in circulating water @ 1 ft/sec.
- Accuracy: As per IEC60751 (see tolerance chart).
- Self-heating error: < 0.30°F (0.17°C).
- Time constant: < 5 sec.
Application Note
The RTD24 Ring Style/Gasket Resistance Temperature Detectors from Tempotech Controls is perfect for surface temperature measurement on tanks, pipes, hot plates, machines, and engines. Offering reliable and accurate readings, it ensures optimal temperature control in various industrial applications. Its customizable options make it ideal for monitoring critical surfaces, enhancing process efficiency and equipment performance.
