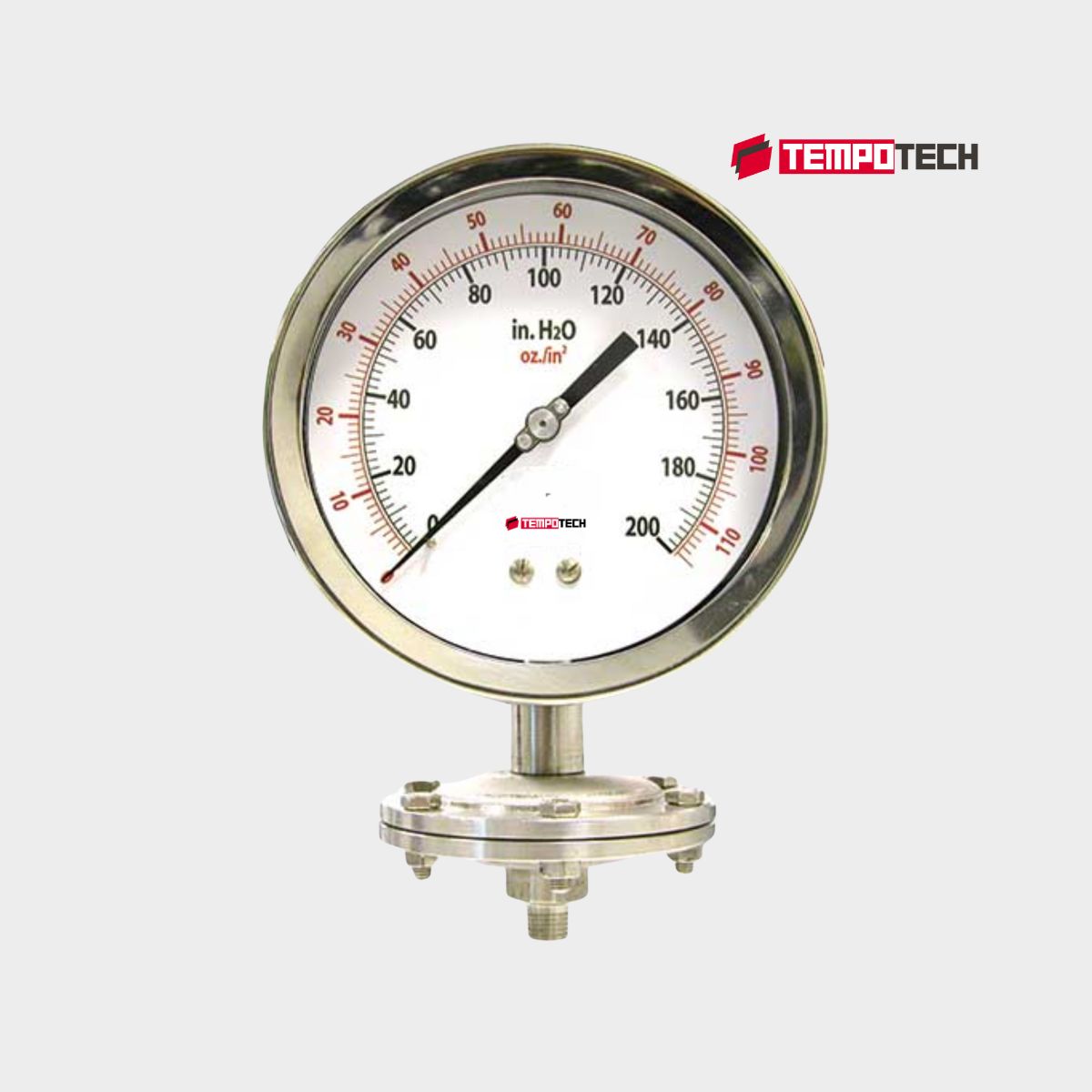

TS-LGD-1, process gauge made from Thermoplastci material , come with different varriant Including material and range.
Key featrues:-
- Dial Size 4.0″(100mm), 6″ (150mm)
- Case Stianless Steel
- Process Connection 316SS
- Glycerin, silicone Filling Gauge.
- Range 0 ” Water Coloum to 300 PSI
- Process Connection 1/4″,1/2″ NPTM Bottom
- Ambient Temperatrue -40°C to 120°C
- Process Temperatrue -40°C to 120°C
- Accuracy ±0.5%
- ASME B40.100 Compliance
- CRN available upon request
Application Note
TS-LGD-1 , process gauge is ideally suited for a wide range of industries, including process, chemical, petroleum, and power sectors. It is specifically designed to handle non-clogging, corrosive media, ensuring reliable performance in challenging environments.
