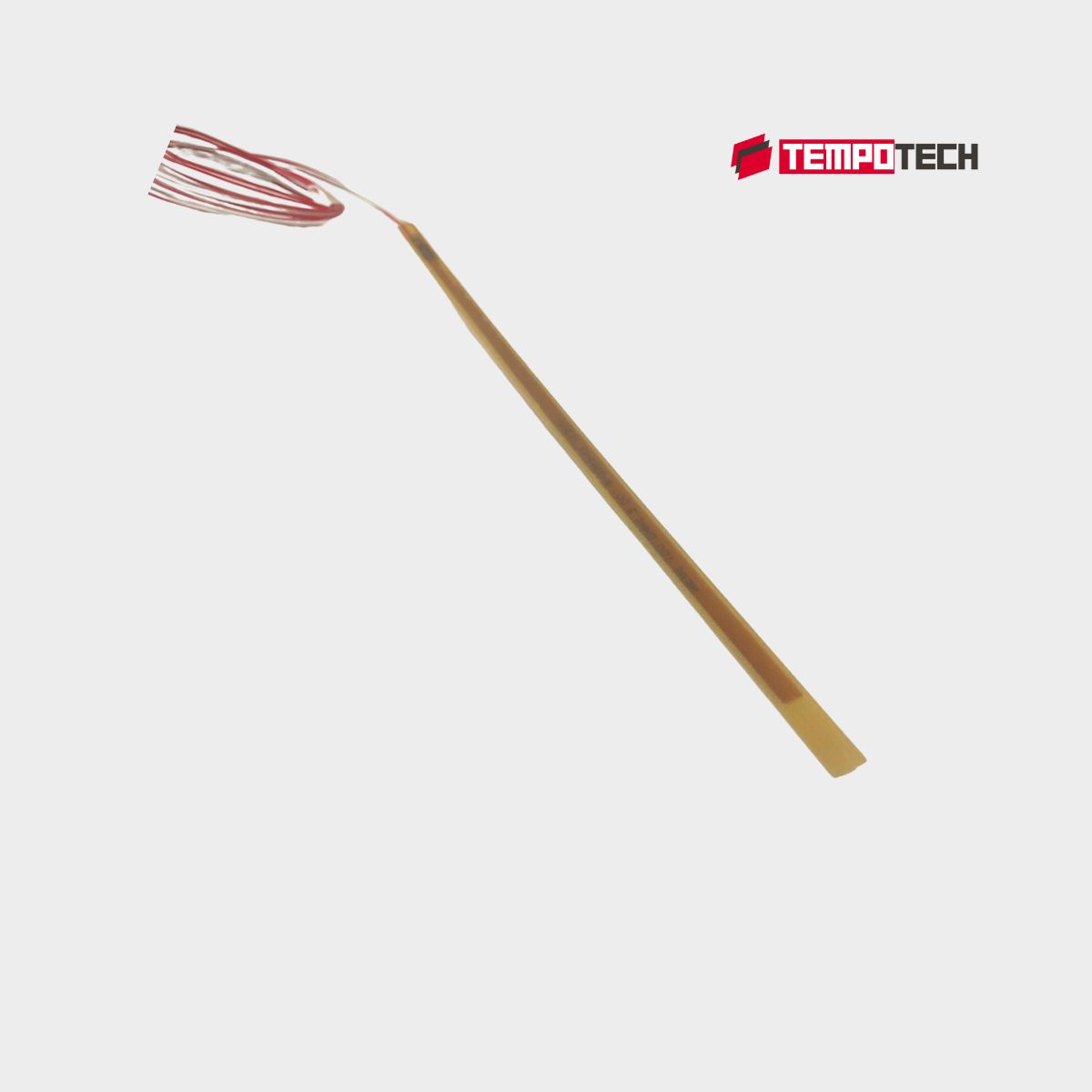

Stator Slot RTD Temperature Sensor is a rectangular, flat, laminated sensor commonly called Stator Slot because they are inserted between the coils in the stator of a motor.
Key Features:-
- Available in Pt100, Pt1000, Pt500 and Pt200
- Accuracy Class A,B as per IEC60751
- PTFE Insulated wire 22 AWG to 28 AWG
- 3 wires ,2 wire, 4 wire configuration options.
- Single & Dual Element
- Thickness 0.8 mm to 5.00 mm, Length 45.0 mm to 600.0 mm, Width 6.5mm to 30.0 mm.
Application Note
Tempotech Controls’ stator slot RTD sensors are essential in various industries, including hydroelectric power, wind turbines, and generators. By monitoring stator winding temperatures, these sensors help prevent overheating, optimize cooling, and detect early signs of component failure or voltage issues. This ensures longer equipment life, reduced downtime, and improved safety, especially during peak demand periods. Additionally, they contribute to significant cost savings by preventing damage to insulation and mechanical parts, enhancing overall motor efficiency and reliability
