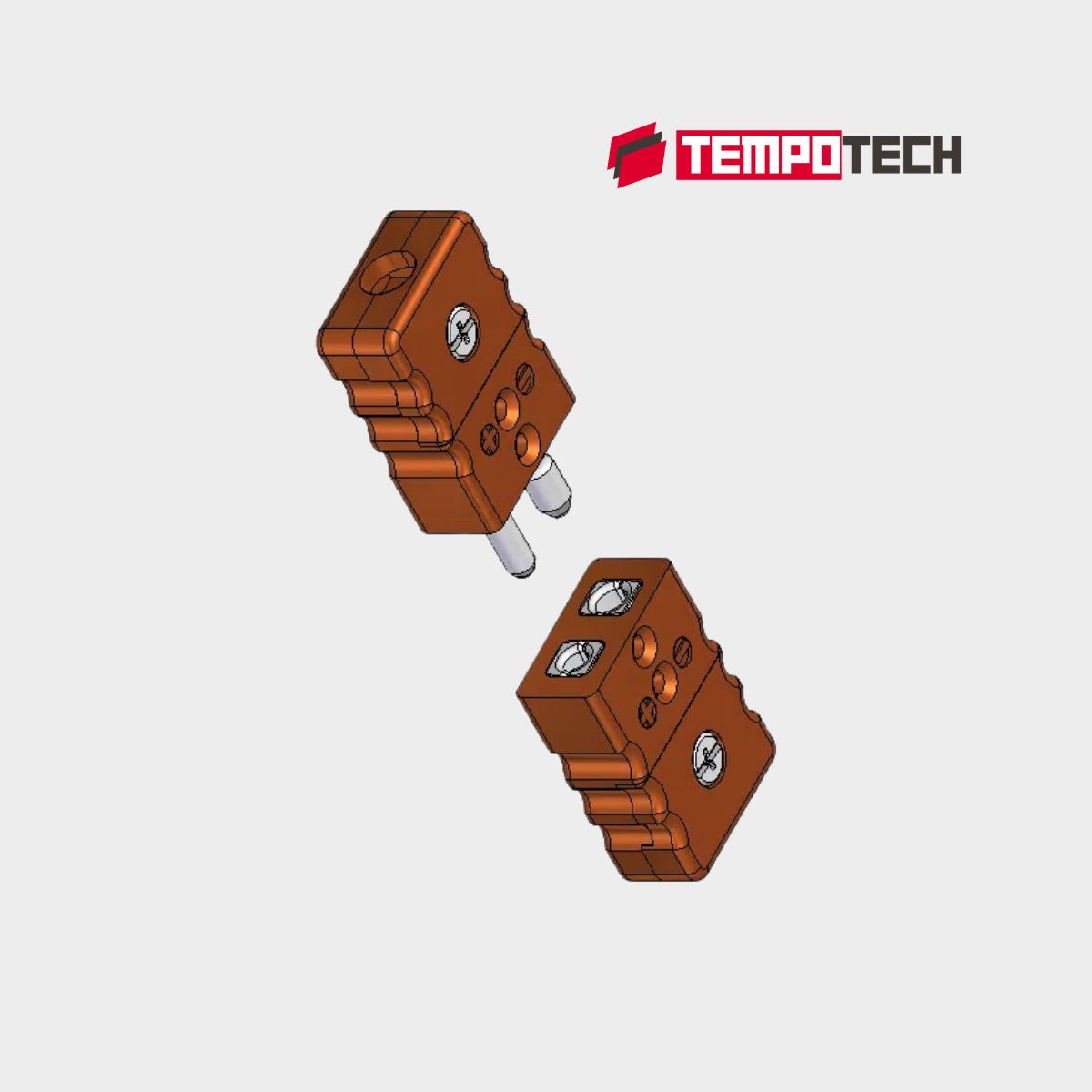

Connector for thermocouple and RTD circuits. Solid pin design ensures good contact even in demanding applications. Hollow pin design offers a good quality product at competitive pricing for less frequently used connectors.
Construction
- Glass filled high quality thermoplastic body with original thermocouple material pins and spring loaded inserts.
- Type Calibration K,J,T,E,N,R/S and B
- Polarized pins.
- Central cover screw design for quick wiring.
- Molded barriers prevent short circuit.
- Captive cover screw for easy assembly.
- Easy wire connection through sandwich construction
- Stainless Steel screws with Phillips head
Wire size
- Accepts wires up to 1,6 mm.
- Maximum cable diameter 8,0 mm.
Temperature rating: 220 °C Max.
Application Note
Thermocouple connectors are essential for accurate temperature measurements in various applications, including aerospace, chemical plants, oil & gas, power plants, and steel mills. They provide secure, reliable connections between thermocouples and control systems, ensuring precise data transmission for efficient process control and safety across industrial environments.
