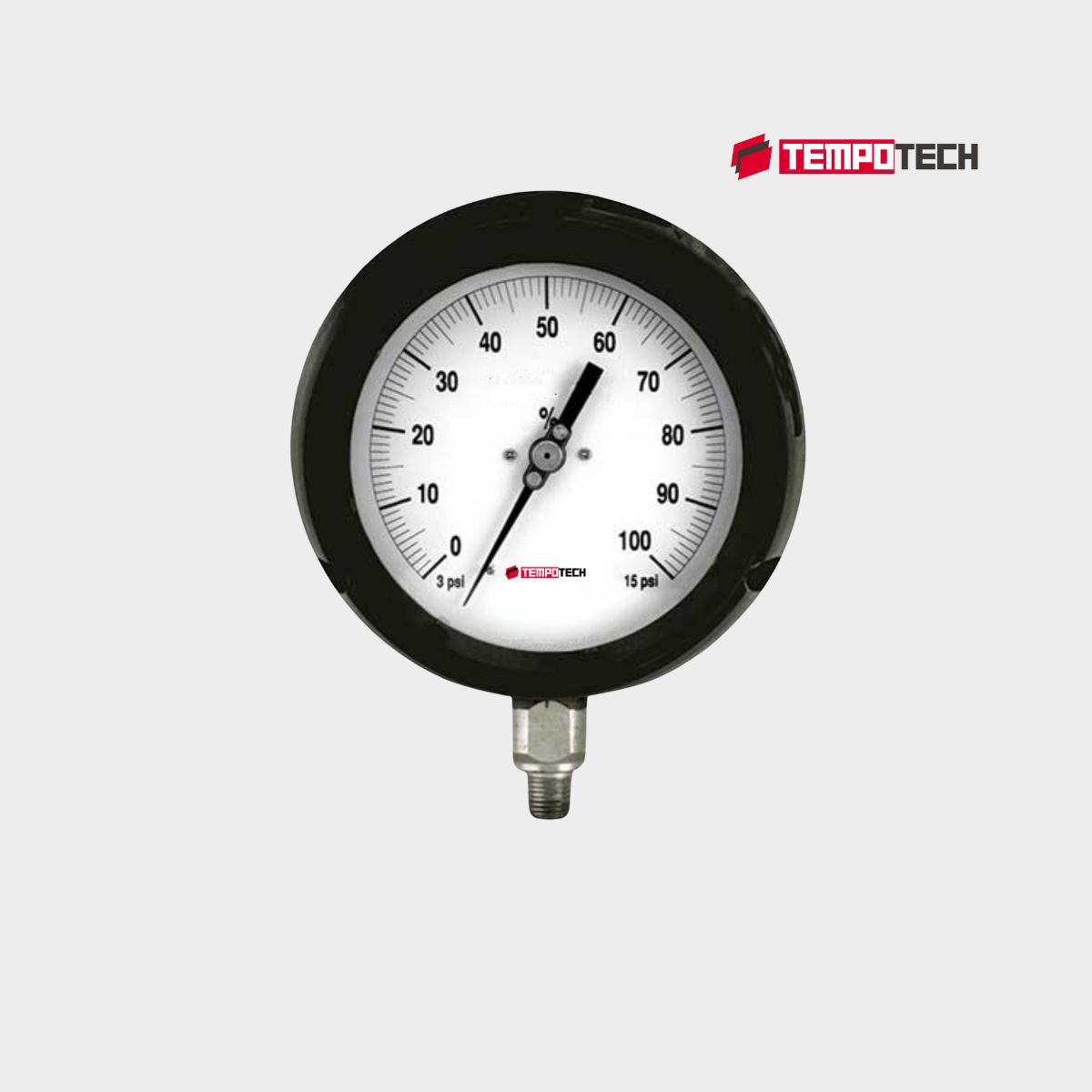

TP-P-1 process gauge made from Thermoplastci material , come with different varriant Including material and range.
Key featrues:-
- Dial Size 4.5″(115mm)
- Case Materail Thermoplastic
- Process Connection 316SS
- Glycerin, silicone Filling Gauge.
- Range -30″ Hg Vac to 20,000 PSI
- Process Connection 1/4″,1/2″ NPTM Bottom
- Ambient Temperatrue -40°C to 60°C
- Process Temperatrue -40°C to 60°C
- Accuracy ±1.6%
- ASME B40.100 Compliance
- CRN available upon request
Application Note
TP-P-1, process gauge is ideally suited for a wide range of industries, including process, chemical, petroleum, and power sectors. It is specifically designed to handle non-clogging, corrosive media, ensuring reliable performance in challenging environments.
