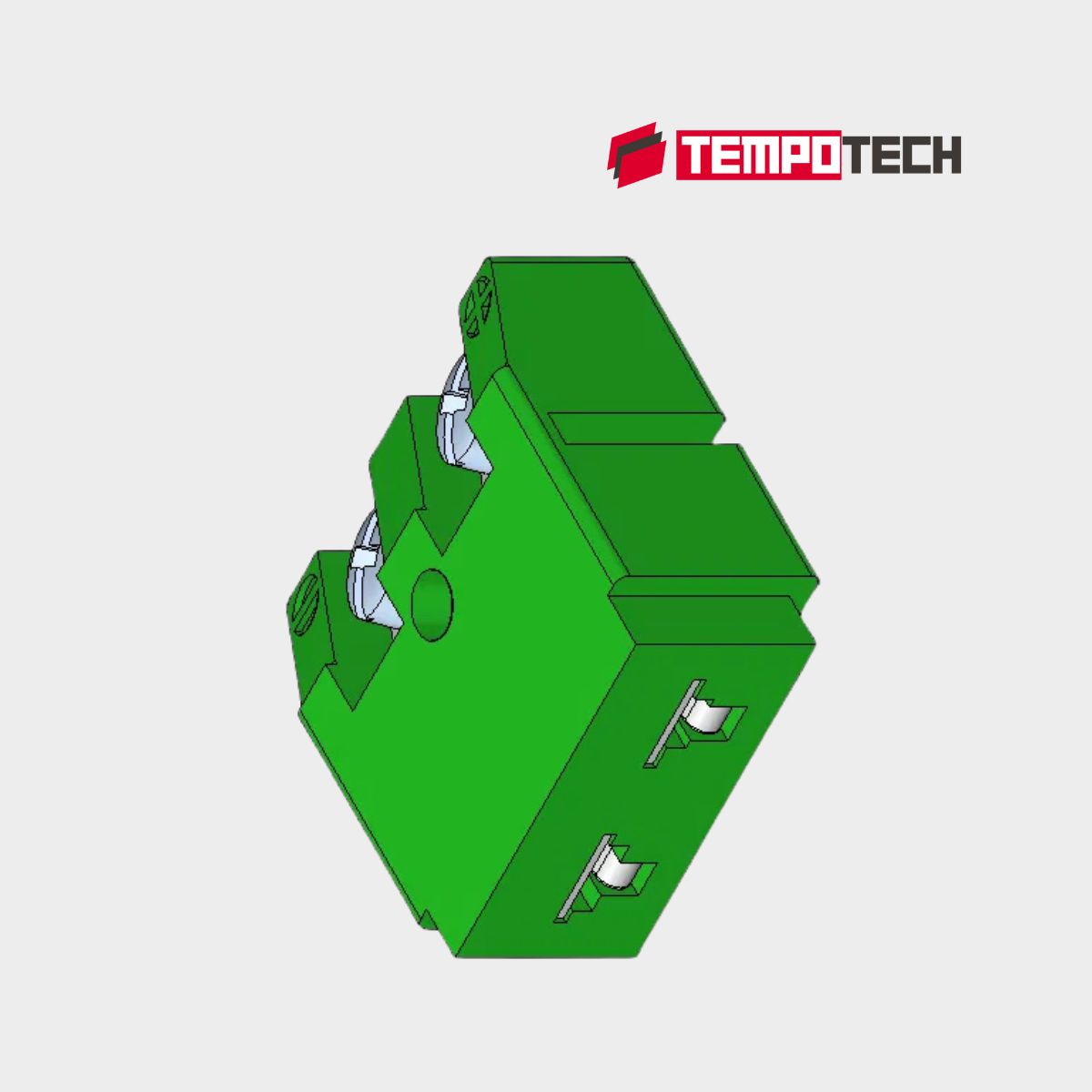

Panel insert for thermocouple and RTD circuits. Specially designed to be used together with panel set.
Construction
- Glass filled thermoplastic body with original thermocouplematerial pins and springloaded inserts.
- Polarized pins.
- Central cover screw design for quick wiring.
- Molded barriers prevent short circuit.
- Captive cover screw for easy assembly.
Wire size
- Accepts wires up to 1,6 mm.
- Maximum cable diameter 8,0 mm.
Temperature rating:
220 °C Max. For Std.
350 °C Max For High Temp
