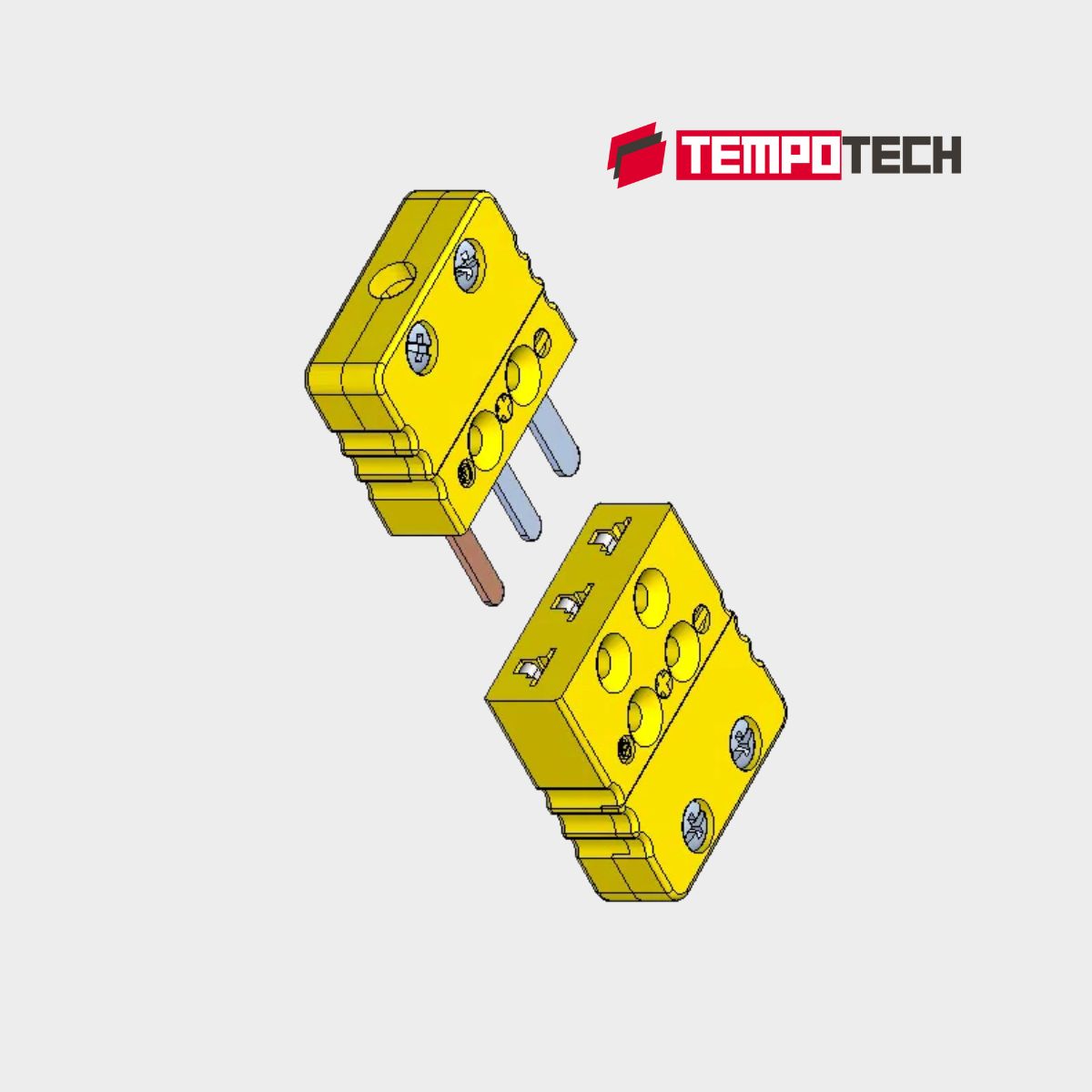

Connector for thermocouple and RTD circuits. Suited for small wires and mineral insulated cable.Third connection for ground or continuous shield connection or for three wire RTD’s
Construction
- Glass filled thermoplastic body with original thermocouplematerial pins and springloaded inserts.
- Type Calibration K,J,T,E,N,R/S and B
- Polarized pins ensure proper connection.
- Easy wire connection through sandwich construction.
- Molded barriers prevent short circuit.
- Rugged one body design.
Wire size
- Accepts wires up to 0,6 mm.
- Maximum cable diameter 4,5 mm.
Temperature rating: 220 °C Max.
Application Note
Thermocouple connectors are essential for accurate temperature measurements in various applications, including aerospace, chemical plants, oil & gas, power plants, and steel mills. They provide secure, reliable connections between thermocouples and control systems, ensuring precise data transmission for efficient process control and safety across industrial environments.
