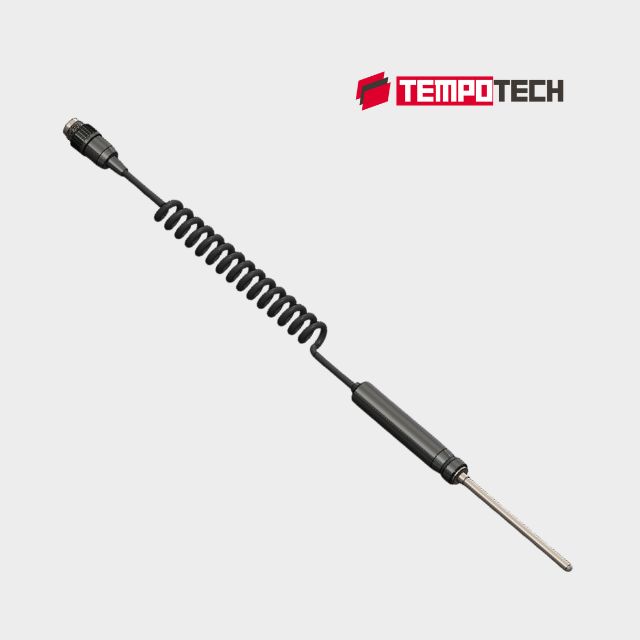

HHRTD- 2 : Hand Held RTD with plastic handle designed for measuring the temperature in multiple applications. It uses an RTD (Resistance Temperature
Detector) element, which is highly accurate and stable, to provide precise temperature readings. These probes are commonly used in food processing, cooking,
or quality control , metal processing, hvac, steam temperature, for safety and quality reasons.
Key Features:-
- Sharp tip option for easy Penetration into the meat or other similar foods.
- FDA Approved 316 SS material to use in direct contact with food.
- Available in type Pt100, Pt1000, Ohm
- Available in Class B, Class A, Class AA, (IEC 60751& ASTM E1137)
- Single and Duplex Sensor elements.
- Range -50°C to 260°C ( -58°F to +500 °F)
- Sheath diameter is available 0.188., 0.250, 5mm, 6 mm
- Option with Heavy Duty tip for extended life.
- Insulation Resistance : 1000 MG Ohms @ 500 vdc
- Response Time : <5 Sec in circulating water @ 1ft/sec
- Accuracy : As per IEC60751 (See tolerance chart)
- Self Heating Error: < 0.30°F (0.17°C)
- Time Constanat : < 5 sec
Application Note
Temperature measurement is essential across various industries to ensure safety, efficiency, and product quality. In HVAC systems, temperature sensors are used to measure surface, air, or liquid temperatures, ensuring optimal comfort and energy efficiency. In the food industry, accurate temperature monitoring is crucial for food safety, particularly during cooking, storage, and refrigeration, helping prevent spoilage and contamination. These sensors are also widely used in commercial kitchens, restaurants, and food production plants for maintaining proper temperature controls. In power generation facilities, they play a critical role in maintenance and safety checks, ensuring safe operating conditions. Additionally, temperature sensors are vital in monitoring the temperatures of molten metals like aluminum, ensuring proper handling during casting and alloying. Lastly, in automotive applications, temperature sensors measure engine, exhaust, and cooling system temperatures to maintain performance and prevent overheating.
