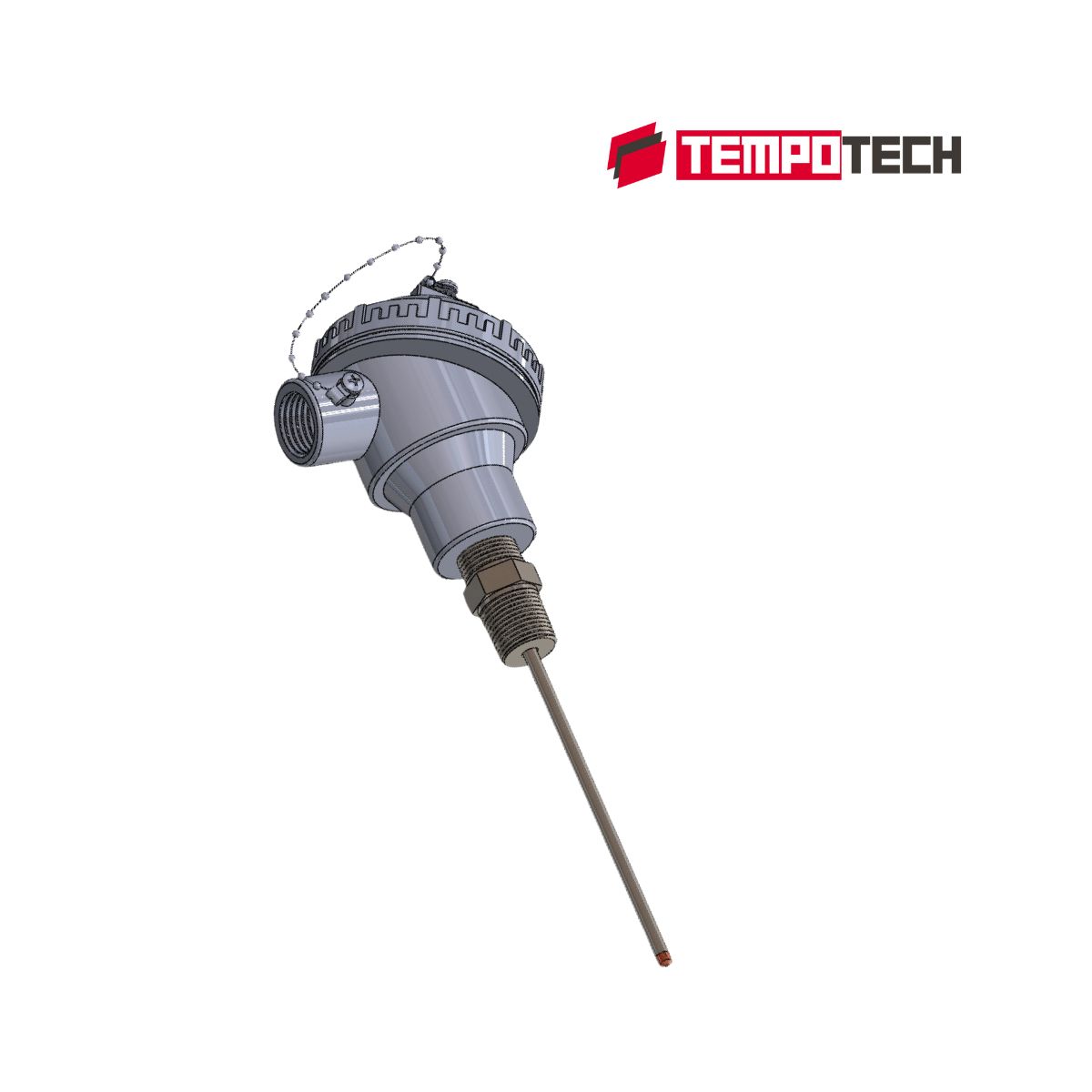

BRTD70- An Industrial RTD (Resistance Temperature Detector) without extension is a high-accuracy industrial temperature sensor designed for direct insertion into a process or surface without the use of thermowells. These RTDs are commonly used in industrial applications where precise temperature measurement is required in harsh or high-temperature environments.
Key Features:-
- Uses connection head to protect the electrical connections from environmental factors such as moisture, dust, and mechanical damage.
- Copper Tip for Fast resposne
- Connection head usually made of aluminum, stainless steel or plastic and available in weatherproof, explosion-proof or corrosion-resistant designs.
- Connection head contains terminals or 4-20mA output temperature transmitter for signal conditioning.
- Available with Pt100 or Pt1000 elements per IEC 60751 standard in Class A or Class B accuracy ratings.
- Available in 2-wire, 3-wire, or 4-wire configurations for enhanced accuracy and reduced lead wire resistance errors.
- Available in 304, 316, or 316L stainless steel for corrosion resistance and sheath diameters range from 3mm to 12mm (custom sizes available).
- Insulation Resistance : 100 MG Ohms @ 250 vdc
- Response Time : <5 Sec in circulating water @ 1ft/sec
- Accuracy : As per IEC60751 (See tolerance chart)
- Self Heating Error: < 0.30°F (0.17°C)
- Time Constanat : < 5 sec
Application Note
BRTD-70 Tip Sensitive Copper Tip Bearing RTD with Connection Head is Sensitive Copper Tip Bearing RTD with Electrically Isolated Tip is essential for bearing temperature monitoring in various critical equipment, including rotors, generators, turbines, and transformers, to ensure efficient power generation and prevent overheating. They are also widely used in other rotating machinery such as pumps, dynamos, compressors, and drilling equipment, helping detect temperature variations that may signal potential failures. Additionally, these temperature sensors are employed in diverse applications like aircraft engines and auxiliary power units, diesel engines, turbochargers, gearboxes, conveyor systems, and locomotive bearings, providing real-time monitoring to enhance performance, prevent damage, and ensure reliable operation across these high-stakes systems.
