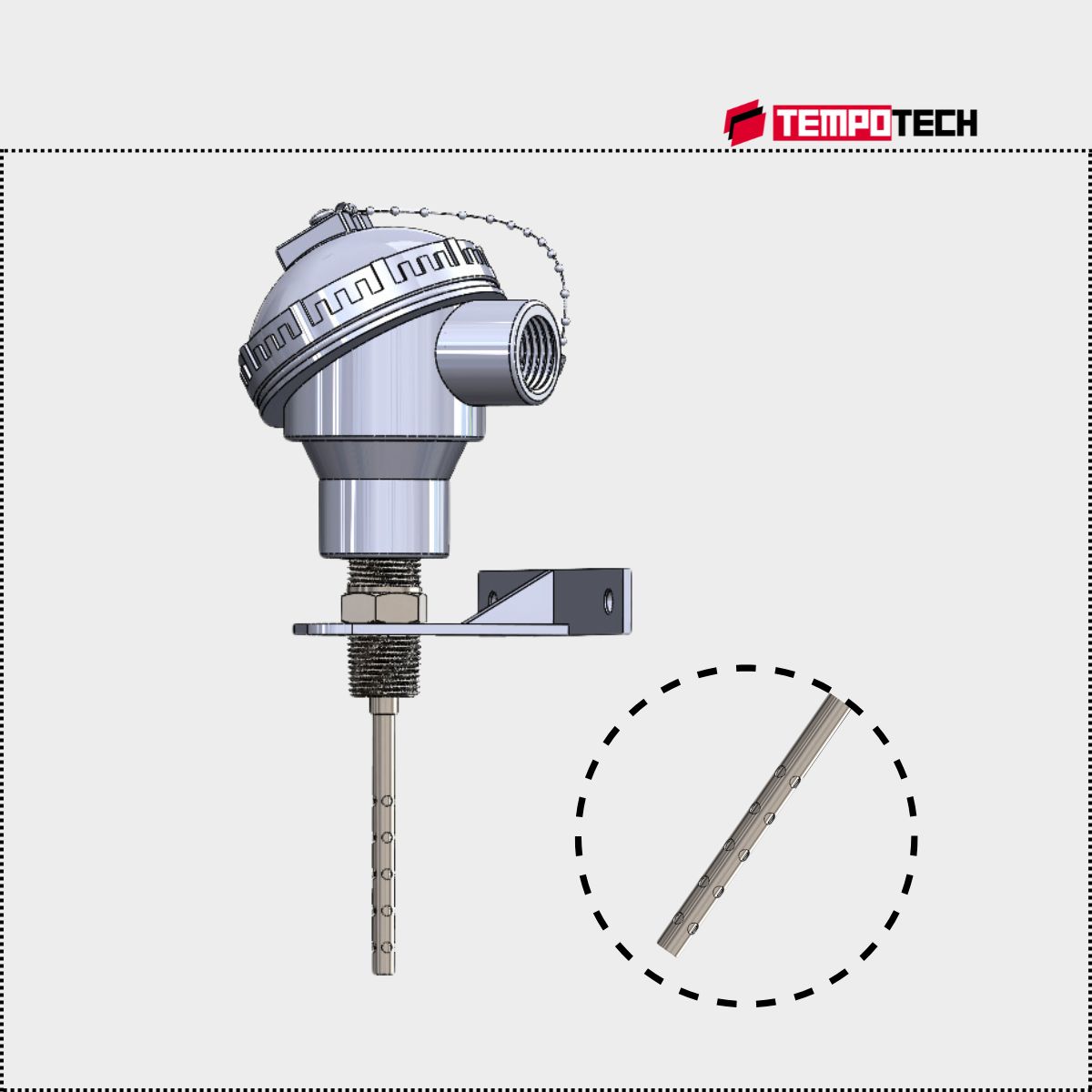

WMT-01- An Industrial RTD (Resistance Temperature Detector) with a Wall mount bracket and airflow tip is a rugged temperature sensor designed for easy installation and maintenance in industrial environments. This configuration includes IP68, NEMA 4x rated connection head and mounting bracket. The std termination head allows for use of std. terminal blocks and head mount transmitters. These RTDs are ideal for cold rooms, digester building, boiler rooms and many other applications.
Key Features:-
- Air flow perforated tip for stable temperature readings.
- Available with Pt100 , Ni120 Ohm or Pt1000 elements per IEC 60751 standard in Class A or Class B accuracy ratings.
- Available in 2-wire, 3-wire, or 4-wire configurations for enhanced accuracy and reduced lead wire resistance errors.
- Available with Polypropylene, Aluminum and Stainless Steel heads.

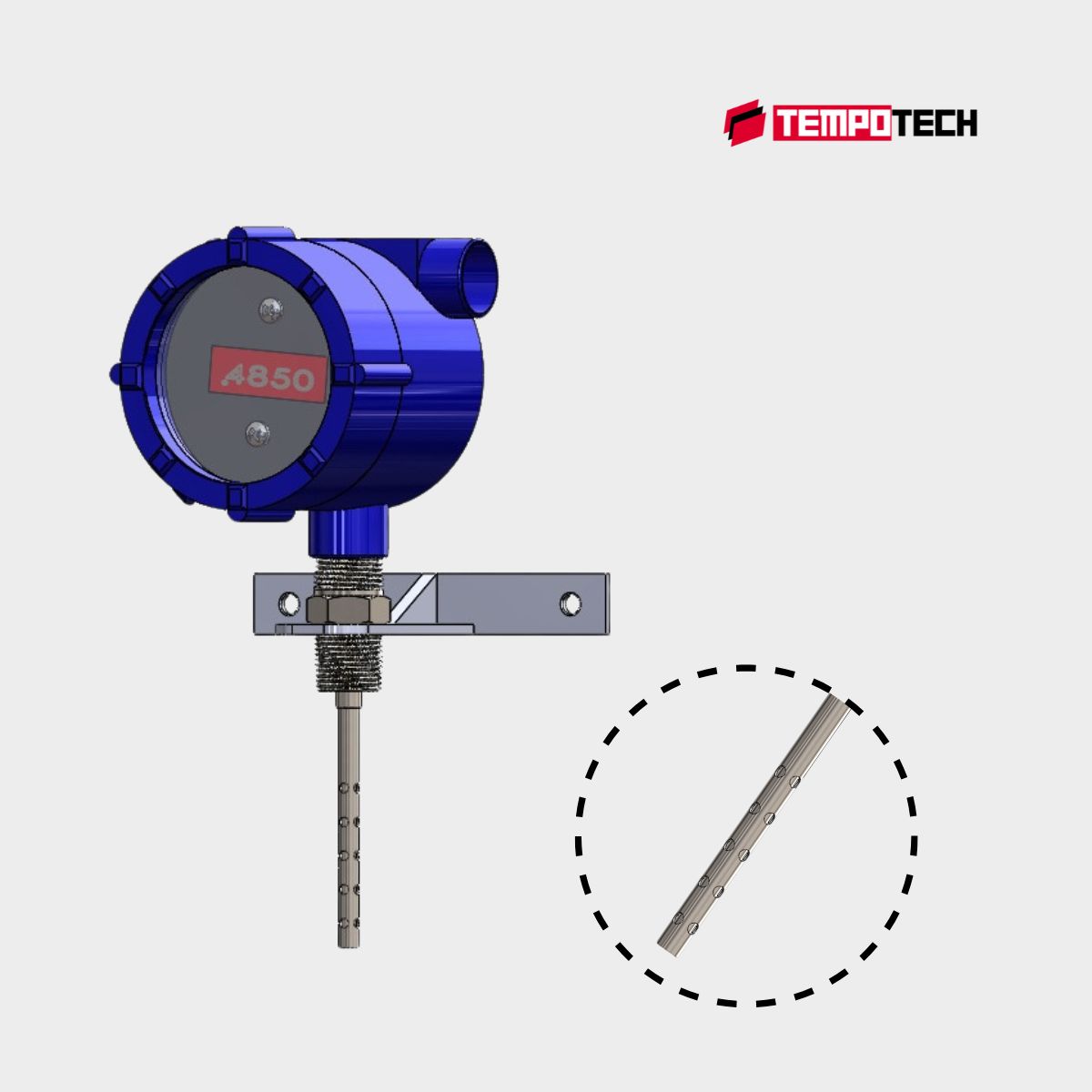

- Available with Explosion proof enclosure to use in hazardous locations.
- Perforated Tip for Stabilize Temperature reading
- Insulation Resistance : 100 MG Ohms @ 250 vdc
- Response Time : <5 Sec in circulating water @ 3ft/sec
- Accuracy : As per IEC60751 (See tolerance chart)
- Self Heating Error: < 0.30°F (0.17°C)
- Time Constant : < 5 sec
Application Note
Wall-mounted temperature sensors are used in a wide range of applications that require precise and continuous temperature monitoring in a fixed location. In HVAC systems, they play a crucial role in regulating and maintaining comfortable indoor climates by ensuring optimal temperature control. These sensors are also vital in industrial settings, where they monitor the temperature of machinery to prevent overheating and ensure equipment operates within safe limits. In warehouses and cold storage facilities, wall-mounted sensors help maintain proper temperature levels for perishable goods, such as food and pharmaceuticals, ensuring they remain within safe ranges. Similarly, in data centers, these sensors are essential for preventing overheating of sensitive electronic equipment, ensuring reliable performance and preventing costly failures. In laboratories, they assist in maintaining controlled environments necessary for experiments and research. Moreover, with the rise of smart technology, these sensors are also integrated into smart home systems to optimize heating and cooling based on real-time temperature data. Overall, wall-mounted temperature sensors are an indispensable tool in any environment where consistent and accurate temperature monitoring is essential.
